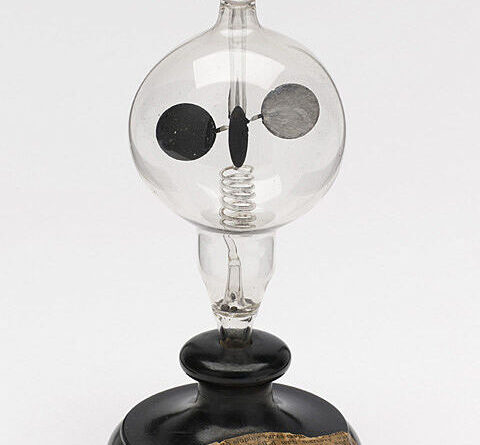

Many people would acknowledge the gadget in the image above, although they most likely would not understand it by its official name: the Crookes radiometer. As its name suggests, positioning the radiometer in light produces a quantifiable modification: the blades begin spinning.

Numerous individuals misinterpret the physics of its operation (which we’ll return to soon). The real forces that drive the blades to spin, called photophoresis, can act upon a range of structures as long as they’re positioned in an adequately low-density environment. Now, a group of scientists has actually found out that it might be possible to utilize the photophoretic result to loft thin sheets of metal into the upper environment of Earth and other worlds. While their concept is to utilize it to send out probes to the part of the environment that’s expensive for balloons and too low for satellites, they have actually checked some working models a bit closer to the Earth’s surface area.

Photophoresis

It’s rather typical– and rather incorrect– to see descriptions of the Crookes radiometer that include radiation pressure. Allegedly, the dark sides of the blades take in more photons, each of which brings a little bit of momentum, providing the dark side of the blades a constant push. The issue with this description is that photons are bouncing off the silvery side, which imparts much more momentum. If the gadget were spinning due to radiation pressure, it would be kipping down the opposite instructions than it in fact does.

An excess of the soaked up photons on the dark side is crucial to comprehending how it works. Photophoresis runs through the temperature level distinction that establishes in between the warm, light-absorbing dark side of the blade and the cooler silvered side.

Any gas particle that run into the dark side will likely get a few of the excess thermal energy from it and move far from the blade quicker than it showed up. At the sorts of air pressures we typically experience, these particles do not get extremely far before they run into other gas particles, which keeps any considerable distinctions from establishing.

A Crookes radiometer is in a sealed glass container with a far lower air pressure. This enables the gas particles to speed off much further from the dark surface area of the blade before they face anything, developing a location of rather lower pressure at its surface area. That triggers gas near the surface area of the glossy side to hurry around and fill this lower-pressure location, imparting the force that begins the blades turning.

It’s quite remarkably ineffective in that sort of setup. Individuals have actually invested a lot of time attempting to develop alternative setups that can produce a bit more force. One concept with a great deal of research study traction is a setup that includes 2 thin metal sheets– one light, one dark– organized parallel to each other. Both sheets would be greatly perforated to reduce weight. And a subset of these holes would have a brief pipeline linking the ones on the leading and bottom sheet. (This has actually gotten the label “nanocardboard.”

These pipelines would serve numerous functions. One is to just connect the 2 sheets into a single system. Another is to function as an insulator, keeping heat from moving from the dark sheet to the light one, and hence improving the temperature level gradient. They supply a direct course for air to move from the top of the light-colored sheet to the bottom of the dark one, offering a bit of directed thrust to assist keep the sheets up.

Optimization

As you may picture, there are a great deal of complimentary specifications you can modify: the size of the space in between the sheets, the density of perforations in them, the variety of those holes that are linked by a pipeline, and so on. A little group of scientists established a system to design various setups and effort to enhance for lift. (We’ll get to their inspirations for doing so a bit later on.)

Beginning with a disk of nanocardboard, “The inputs to the model are the geometric, optical and thermal properties of the disk, ambient gas conditions, and external radiative heat fluxes on the disk,” as the scientists explain it. “The outputs are the conductive heat fluxes on the two membranes, the membrane temperatures, and the net photophoretic lofting force on the structure.” In basic, the ambient gas conditions required to produce lift resemble the ones inside the Crookes radiometer: well listed below the atmospheric pressure at sea level.

The design recommended that 3 patterns must affect any last styles. The very first is that the density of perforations is a balance. At fairly low elevations (implying a denser environment), lots of perforations increase the tension on big sheets, however they reduce the tension for little products at high elevations. The other thing is that, instead of increasing with area, lift tends to drop since the sheets are most likely to equilibrate to the fundamental temperature levels. A square millimeter of nanocardboard produces over 10 times more lift per area than a 10-square-centimeter piece of the exact same product.

The scientists determine that the lift is at its optimum in the mesosphere, the location simply above the stratosphere (50– 100 kilometers above Earth’s surface area).
